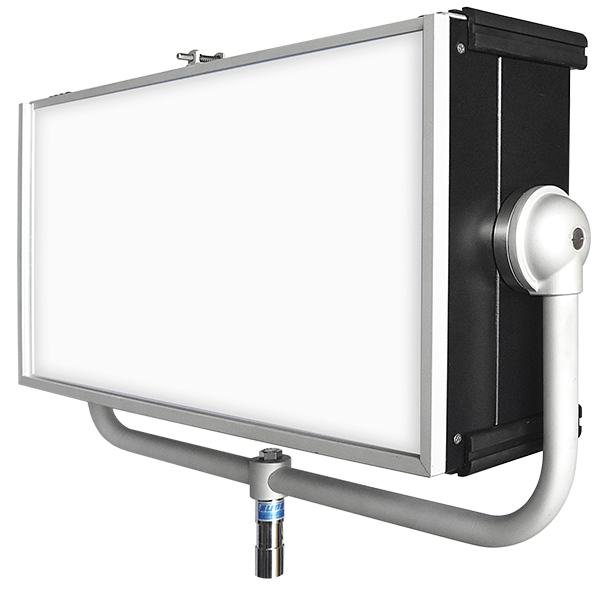

Cineo Standard 410

Cineo has added yet another powerful creative tool to the lighting professional’s arsenal – the Standard 410. Combining our award-winning white-light quality with innovative saturated-color technology, the Standard 410 delivers up to 25,000 lumens of beautiful, easily controllable, full-gamut light.

Overview

Boasting a substantial 2’ x 1’ diffused illuminating surface, the Standard 410 is perfectly sized for use in the studio or out in the field. With a maximum power of 410 watts and weighing in at less than 27 lbs., this fixture offers a unique combination of convenience and capability.

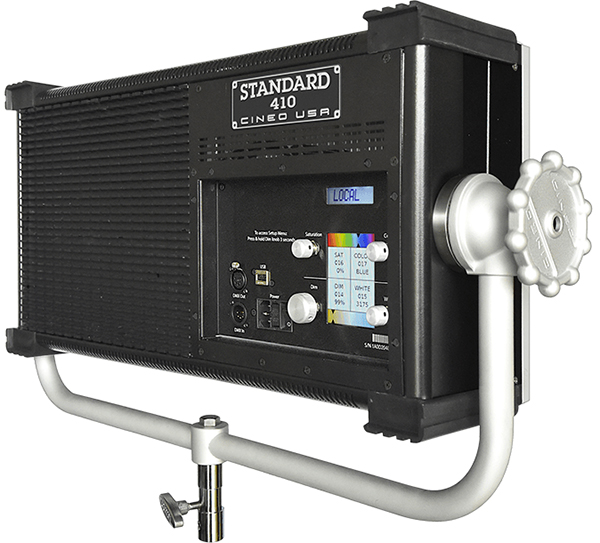

Creating beautiful light within an extended color gamut is only part of the story. Cineo has developed an intuitive control strategy that allows predictable, repeatable results, either using the graphical control panel or remotely with wired or built-in wireless CRMX control.

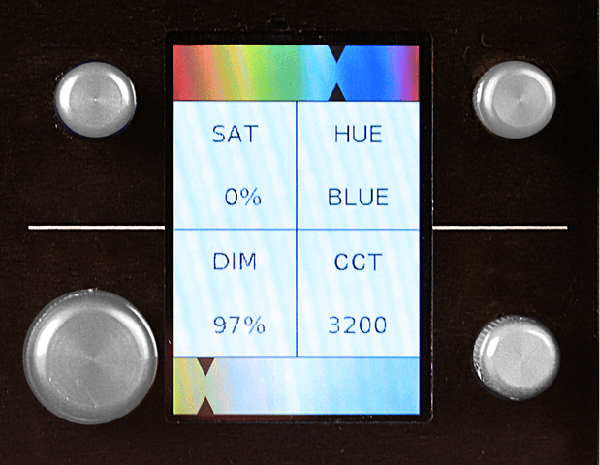

The strategy is simple – four controls or four DMX channels control the entire fixture in a single mode of operation:



Dim - Cineo's Photo-Accurate Dimming maps the 0-100% dimming curve to actual camera stops for precise output control using the MASTER control locally or on the first DMX channel.

CCT - For colour-accurate white light, choose the CCT as you would with any Cineo fixture, using the CCT rotary control or the second DMX channel.

Saturation controls the amount of saturated colour to be added to the white light, from full white to fully saturated colour, managed on the third DMX channel.

Hue - To optionally add saturated colour, the HUE control adjusts the hue, the colour of which is displayed on the control panel, or managed on the fourth DMX channel.

With Standard 410, the same color shading can be achieved regardless of the CCT used for photography. For example, +2 Green added to 3200K CCT will look the same as +2 Green at 5600K to the correctly white-balanced camera.

In addition to our proprietary phosphor-converted white light LEDs, we developed phosphor-converted saturated colour LEDs. These work with the phosphor recipes in the white LEDs to create a balanced, natural-looking spectrum featuring Cineo’s deep-red color rendering technology. The saturated colour LEDs use the exact same dies as the white LEDs, so all light emitting elements of the Standard 410 carry identical thermal stability, and perform over time with identical differential aging. So after years of service, colour stability remains consistent.

Features

Consistency

SmartPower technology provides consistent light output regardless of the battery level

Output

The Standard 410 puts out up to 25,000 lumens of fully-controllable light and unbeatable colour.

Reliability

Colour constancy and flicker-free operation that will last throughout the life of the product.

Size

Measuring in at 24" x 12", the powerfully compact Standard 410 weighs less than 27 lbs.

Silence

Our passive cooling system requires no fans, alleviating the convern over excess noise.

Simplicity

The Standard 410 provides fully-controllable colour without the inconvenience of gels.

Specifications

Input Power:	110-240VAC, 410 watts max. Integrated power supply with locking IEC connection
Fixture Size:	12” x 24 x 4.5” (37.4cm x 61cm x 11.5cm)
Weight:	26 lbs. (12 kg.)
Mounting:	Mounting yoke includes TVMP
Variable CCT:M	Preset at 2700K, 3200K, 4300K, 5600K, 6500K Variable saturated color with presets at Red, Yellow, Green, Cyan, Blue, Magenta Variable white/color blending
Local and Remote dimming, 0-100%
5-pin wired DMX/RDM In and Thru
Integrated LumenRadio™ CRMX bi-directional wireless DMX/RDM
Completely flicker-free operation
Completely flicker-free operation
Silent, passive cooling:	No Fans
Environmental Temperature Range:	-20 – +50 C +45 C
ETL, cETL, CE pending
Made in USA

Output

CCT	Foot-candles @ 10ft.	Lux @ 3m.
2700	65	700
3200	92	990
4300	123	1324
5600	112	1206
6500	80	861

Downloads

Standard 410 Cut Sheet

Standard 410 User Guide
