Cineo HS2
Cineo Lighting continues to pioneer Remote Phosphor technology for image capture with HS2, the second generation of the revolutionary HS fixture currently in use on motion picture sets and in broadcast studios worldwide.
All HS2 components are 100% cross-compatible with all legacy HS and LS fixtures, accessories, phosphor
panels, and cabling.

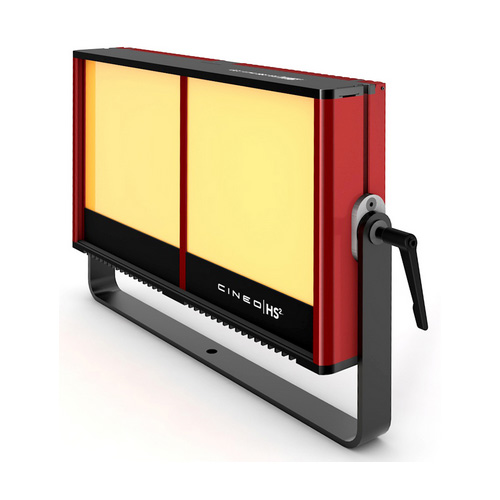

The HS2 lamphead features a single piece design for increased ruggedness, as well as an improved safety
switch for better reliability. 80/20 mounting slots on both the sides and back of the fixture make attaching
yoke and accessories easy. Two distinct mixing chambers allow custom CCT mixing via DMX. New hinged
top access panel allows for easy, one-handed phosphor panel and accessory changes.
The RDM450 is smaller and lighter weight than the legacy DTZ450 power supply and features completely
re-designed electronics for improved reliability. Other new features include digital display and control,
remote programming via RDM, as well as fine dimming, smooth dimming and strobe capability. The

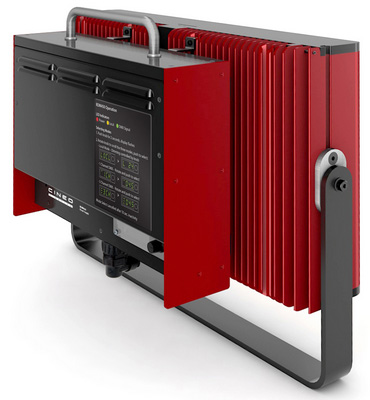

RDM450 can be attached directly to the HS2 head for one-piece operation or operated remotely up to
300 feet from the fixture.
HS2 represents Cineo Lighting’s commitment to constant innovation of illumination technology. This
second generation tool builds upon Cineo’s years of experience in Remote Phosphor Technology while
continuing to provide the unexcelled brightness, extremely accurate color quality, power efficiency, and
flexibility that hundreds of cinematographers, gaffers, and lighting designers rely on daily.
HS2 Lamphead Features
- Utilizes Remote Phosphor Technology (RPT) for accurate, consistent output
- Full compatible with all legacy HS and LS power supplies, accessories, phosphor panels, and cabling
- Local and DMX dimming with no color shift 0-100%
- 80/20 mounting slots on both sides and back
- Two mixing chambers provides custom CCT mixing
- Hinged top access panel for easy operation
RDM450 Power Supply Features
- Completely re-designed electronics improves reliability
- Smaller, lighter weight than previous power supplies
- Improved digital display and control
- Remote DMX address programming via RDM
- Operates up to 300' from fixture
- Optionally attaches directly to the HS2 head
- Smooth Dimming (0-100%) and strobe capability
- Fine dimming mode available on DMX
- Flicker-free, completely silent operation
HS2 Specs
| Highly Accurate Colour Rendering |
CRI 98 2700K, CRI 98 @ 3200K
CRI 97 @ 4300K, CRI 94 @ 5600K
CRI 93 @ 6500K |
| Super Bright, Hyper Soft: |
Over 700 lx @ 3m with a 160° beam spread |
| Colour Temperature: |
2700K, 3200K, 4300K, 5600K, 6500K |
| Output: |
|
2700K |
93 fc @ 10 ft. (995 lux @ 3m) |
| 3200K |
100 fc @ 10 ft. (1070 lux @ 3m) |
| 4300K |
110 fc @ 10 ft. (1177 lux @ 3m) |
| 5600K |
112 fc @ 10 ft. (1198 lux @ 3m) |
| 6500K |
116 fc @ 10 ft. (1241 lux @ 3m) |
| Input Voltage: |
100-240VAC 50/60 Hz |
| Power Consumption: |
500 watts max |
| Lamp head dimensions: |
12? H x 21? W x 3.8? D (290 mm x 532 mm x 96.5 mm) |
| Lamp head weight: |
22 lbs (9.9 kg) |
| RDM450 PSU dimensions: |
3" H x 13" W x 9.5" D
(76 mm x 330 mm x 241 mm) |
| RDM450 Weight: |
11 lbs (4.9 kg) |
| Max temperature rise: |
45° C |
| Environmental temperature range: |
-20° to +50°C |
| Lamp Life: |
35,000 hours, L70 rated |
| Mounting: |
Yoke included, double yoke, pole op |
| Certifications: |
ETL listed for dry location
FCC compliant
CE compliant
ROHS compliant |
| Warranty: |
Two years parts and labour |
| Accessories: |
60° Egg crate
90° Louver
Gel frame
Barn doors
Snap Grid
Softbox |
| Zero UV Light Emitted |
|
| Made in USA |
|
HS2 Output
|
FC @ 10'
(open face) |
FC @ 10'
(with 120° intensifier) |
LUX @ 3m
(open face) |
LUX @ 3m
(with 120° intensifier) |
CRI |
CRIe |
| TLCI |
| 2700K |
93 |
116 |
986 |
1230 |
97 |
96 |
97 |
99 |
| 3200K |
100 |
125 |
1060 |
1325 |
97 |
96 |
96 |
99 |
| 4300K |
110 |
138 |
1166 |
1463 |
97 |
96 |
94 |
98 |
| 5600K |
112 |
140 |
1187 |
1484 |
96 |
95 |
93 |
97 |
| 6500K |
116 |
145 |
1230 |
1537 |
95 |
94 |
92 |
97 |
Chroma
Green |
178 |
223 |
1887 |
2364 |
|
|
|
|
Chroma
Blue |
30 |
38 |
318 |
403 |
|
|
|
|

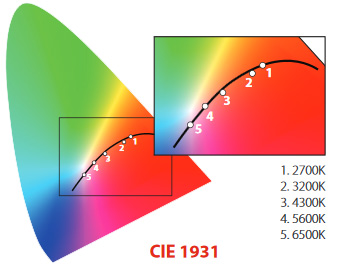

Colour Quality
Black Body Curve
Download HS2 Cut Sheet
Download HS2 Catalogue
Price List
Kits
| Kits |
| Part Number |
Describtion |
USD List Price |
| 901.0006 |
HS2 3200 2-piece kit
c/w: HS2 Lamphead, RP Panel set - 3200K, 10' Lamphead Cable,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0007 |
HS2 5600 2-piece kit
c/w: HS2 Lamphead, RP Panel set - 5600K, 10' Lamphead Cable,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0018 |
HS2 2700 2-piece kit
c/w: HS2 Lamphead, RP Panel set - 2700K, 10' Lamphead Cable,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0019 |
HS2 4300 2-piece kit
c/w: HS2 Lamphead, RP Panel set - 4300K, 10' Lamphead Cable,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0106 |
HS2 3200 Integrated Kit
c/w: HS2 Lamphead, RP Panel set - 3200K, RDM450 Mounting Kit,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0107 |
HS2 5600 Integrated Kit
c/w: HS2 Lamphead, RP Panel set - 5600K, RDM450 Mounting Kit,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0118 |
HS2 2700 Integrated Kit
c/w: HS2 Lamphead, RP Panel set - 2700K, RDM450 Mounting Kit,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0119 |
HS2 4300 Integrated Kit
c/w: HS2 Lamphead, RP Panel set - 4300K, RDM450 Mounting Kit,
Cineo RDM450 PSU, locking AC power cord, TVMP adapter. |
$3,795.00 |
| 901.0021 |
Cineo HS2 Bi-color 2-piece Kit
c/w: HS2 lamphead, RDM450 power supply, 10' lamphead cable,
3200K and 5600K RP panel sets, AC power cable, TVMP adapter |
$4,200.00 |
| 901.0022 |
Cineo HS2 Bi-color integrated Kit
c/w: HS2 lamphead, RDM450 power supply, RDM450 Mounting Kit,
3200K and 5600K panel sets, AC power cable, TVMP adapter |
$4,200.00 |
Lampheads |
| 900.0015 |
HS2 Lamphead and Yoke (no cable, no panels) |
$1,600.00 |
| 900.0059 |
HS2 Lamphead and Pole-op Yoke (no cable, no panels) |
$2,200.00 |
| 900.0161 |
HS2 Lamphead only. No yoke, cable, or panels |
$1,500.00 |
Power Supplies |
| 900.0040 |
Cineo RDM450 Power Supply for all HS and LS systems |
$1,750.00 |
| 900.0050 |
AC Power Cord, Edison to Locking IEC, 6ft. |
$24.00 |
| 900.0051 |
AC Power Cord, UK 13A to Locking IEC, 2m |
$36.00 |
| 900.0052 |
AC Power Cord, Schuko to Locking IEC, 2m |
$30.00 |
Lamphead Cables |
| 900.0027 |
RDM450 Mounting Cable for HS2 |
$95.00 |
| 900.0023 |
HS / LS Lamp Head Cable, 10' |
$150.00 |
| 900.0024 |
HS / LS Lamp Head Cable, 30' |
$190.00 |
| 900.0025 |
HS / LS Lamp Head cable, 50' |
$220.00 |
| 900.0049 |
HS / LS Lamp Head cable, 100' |
$400.00 |
Mounting Hardware |
| 900.0058 |
TVMP Adapter |
$24.00 |
| 900.0060 |
Latching hanging bracket for Cineo power supplies |
$50.00 |
| 900.0120 |
RDM450 Mounting Kit, Includes mounting rails, connector cable, and instructions. |
$250.00 |
Remote Phosphor Panels |
| 902.1127 |
HS Phosphor panel (set of 2) - 2700K |
$495.00 |
| 902.1132 |
HS Phosphor panel (set of 2) - 3200K |
$395.00 |
| 902.1143 |
HS Phosphor panel (set of 2) - 4300K |
$495.00 |
| 902.1156 |
HS Phosphor panel (set of 2) - 5600K |
$395.00 |
| 902.1165 |
HS Phosphor panel (set of 2) - 6500K |
$495.00 |
| 902.1150 |
HS Phosphor panel (set of 2) - Chroma Green |
$695.00 |
| 902.1140 |
HS Phosphor panel (set of 2) - Chroma Blue |
$200.00 |
| 902.0013 |
Phosphor panel carry pouch |
$95.00 |
Light Control |
| 900.0019 |
HS louver 90°, Black anodized aluminum |
$250.00 |
| 902.0011 |
HS Snapgrid 90°, Black soft fabric |
$250.00 |
| 900.0017 |
HS Eggcrate 60°, Black soft fabric |
$250.00 |
| 900.0020 |
HS Gel frame, Black anodized aluminum |
$80.00 |
| 900.0021 |
HS 4-leaf barn door, Black anodized aluminum |
$350.00 |
| 902.0016 |
HS Chimera kit, Large (36" x 48") |
$695.00 |
| 902.0015 |
HS Chimera kit, Small (24" x 32") |
$435.00 |
| 902.2322 |
Snapgrid for Small Chimera Box |
$350.00 |
| 902.2323 |
Snapgrid for Medium Chimera Box |
$525.00 |
| 900.0099 |
SPACE Skirt and Target |
$395.00 |
| 902.0102 |
Snapbag for Cineo HS Light, 1m x 1m w/ speedring, bag |
$825.00 |
| 902.2324 |
Snapgrid Insert for HS Snapbag |
$756.00 |
Conversion Kits |
| 900.0065 |
SPACE conversion kit, bracket and hardware |
$495.00 |
| 900.0072 |
XS conversion kit, bracket and hardware |
$595.00 |
| 900.0066 |
HS Pole-op yoke, yoke no hardware (requires 900.0069) |
$495.00 |
| 900.0069 |
HS/LS Pole-op hardware mounting kit, no yoke |
$50.00 |
Cases |
| 902.1101 |
Calzone Anvil case for Cineo HS |
$895.00 |
| 902.1102 |
Calzone Anvil case for Cineo HS2 |
Price $See Above
Prices in
RED are No Longer Valid - Call for Price.
Prices in BLUE are No Longer Valid - Call for Price
Prices have not been updated and are not applicable.
We are buiding a new site so please use this as an outdated guide only
Please call or email to check current product prices and stock.
