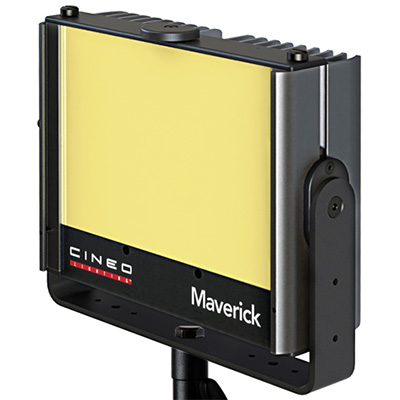

Cineo Maverick
Cineo Maverick is the long-awaited portable member the family from Cineo Lighting. This evolutionary
fixture provides all of the benefits of Remote Phosphor Technology found in the TruColor HS and LS,
while better meeting the demands of field use: lightweight, DC Powered and weatherproof.
Cineo Maverick delivers a volume of light equal to a traditional 1K soft source, optimized for image capture
as well as other applications that demand accurate colour rendering.

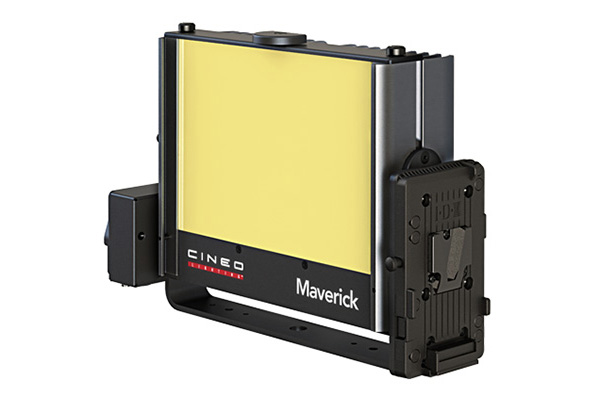

With a wide array of accessories, power supply, and mounting options, Maverick becomes another
indespensible tool for motion picture and television professionals from Cineo Lighting.
As with Cineo's TruColor HS and LS, interchangeable phosphor panels permit a variety of colour temperatures

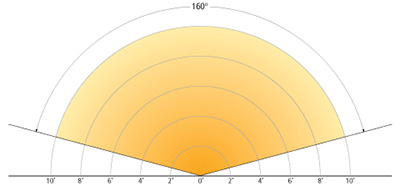

in one fixture. Extended CRI for Maverick is over 95 and it generates the same 160° beam spread as
HS and LS.
Features
| Portable: |
Operates on 12-32 VDC from a variety of power sources |
| Highly Accurate Colour Rendering: |
CRI 98 @ 2700K, CRI 98 @ 3200K,
CRI 97 @ 4300K, CRI 94 @ 5600K,
CRI 93 @ 6500K |
| Super Bright, Hyper Soft: |
Over 20fc @ 10' (215 lx @ 3m) with a 160° beam spread |
| Dimmable: |
Rotary on-board or DMX control: 0-100% with no colour shift |
| Flicker-free: |
No flicker at any frame rate |
| Passive Cooling: |
Lamp head has no fan, no noise |
| Field Replaceable Components: |
Modular design for easy service |
Designed and manufactured in the USA
Specifications
| Super Bright, Hyper Soft: |
Over 700 lx @ 3m with a 160° spread |
| Output: |
2700K = 17 fc @ 10 ft. (183 lx @ 3m)
3200K = 19 fc @ 10 ft. (205 lx @ 3m)
4300K = 22 fc @ 10 ft. (237 lx @ 3m)
5600K = 23 fc @ 10 ft. (248 lx @ 3m)
6500K = 23 fc @ 10 ft. (248 lx @ 3m) |
| Colour Temperature: |
2700K, 3200K, 4300K, 5600K, 6500K |
| Beam Angle: |
> 160° |
| Dimming: |
Rotary on-board or DMX control: 0-100% |
| Input Power: |
12-32 VDC,
120 watts max |
| Output Frequency: |
0 (Direct current drive) |
| Environmental temperature range: |
-20° to +50°C |
| Max temperature rise: |
+45°C |
| Lamp Life: |
35,000 hours, L70 rated |
| Mounting: |
80/20 T-slot mounting, removable yoke |
| Certification: |
ETL, cETL pending
CE compliant |
| Dimensions: |
Lamp head (w/yoke): 9.5"H x 11.06"W x 3.33"D
(241mm x 280mm x 84.6mm) |
| Weight: |
Lamp head: 4.9 lbs (2.3 kg) |
| Warranty: |
Two years parts and labour |
| Accessories: |
90° Louvre
Gel Frame
Barn Doors
Snap Grid
Softbox |
Colour Quality

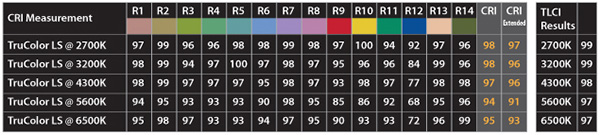

Maverick delivers an unprecendented volume of soft light optimized for image capture. The CRI chart below
displays measurements for Maverick in the extended colour range for five colour temperatures.
To the right of the CRI is a table showing results based on the new TLCI standard.
The split colour chart below shows the colour response Maverick@3200K and tungsten split across each
sample with tungsten on top.

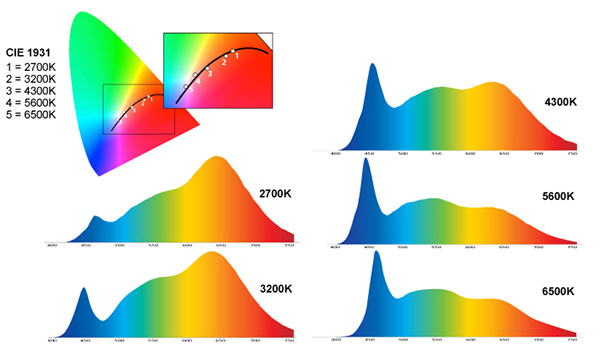

A CIE 1931 graph and spectral data as measured by a spectrometer for the three colour temperatures are
shown below.
Downloads
Cineo Maverick Cut Sheet
Remote Phosphor Info Sheet
Price List
| Product |
Item Code |
Description |
Price |
 |
900.0085 |
Cineo Maverick Lamphead and Yoke |
$1,449.00 |
 |
900.0095
900.0195 |
Cineo Maverick 120W AC Adapter
Cineo Maverick 150W AC Adapter |
$275.00
$295.00 |
 |
900.0050
900.0051
900.0052 |
AC Power Cord - Edison to Locking IEC, 6ft.
AC Power Cord - UK 13A to Locking IEC, 2m
AC Power Cord - Schuko to Locking IEC, 2m |
$24.00
$36.00
$30.00 |
 |
900.0086 |
Cineo Maverick V-Lock Battery Adapter |
$249.00 |
 |
900.0094 |
Cineo Maverick A/B Gold Mount Battery Adapter |
$299.00 |
 |
900.0087 |
Cineo Maverick DMX Adapter |
$399.00 |
 |
900.0058 |
TVMP Adapter |
$24.00 |
 |
900.096 |
Cineo Maverick Backpack Accessory Bracket |
$98.00 |
 |
900.0090 |
Cineo Maverick Gel Frame |
$80.00 |
 |
900.0089 |
Cineo Maverick 4-Leaf Barn Door Set |
$200.00 |
 |
900.0088 |
Cineo Maverick 90° Louvre |
$120.00 |
 |
900.0083 |
Cineo Maverick Lamphead Only - No Yoke, No Panels |
$1,249.00 |
|
900.0084 |
Cineo Maverick Yoke Assembly |
$225.00 |
 |
901.0082 |
Cineo Maverick Daylight Studio Kit
Includes: Fixture, 5600K Panel, DMX Adapter,
AC Adapter, Stand Adapter |
$2,350.00 |
|
901.0081 |
Cineo Maverick Tungsten Studio Kit
Includes: Fixture, 3200K Panel, DMX Adapter,
AC Adapter, Stand Adapter |
$2,350.00 |
 |
901.0080 |
Cineo Maverick Bi-Colour Portable Kit
Includes: Fixture, Yoke, 3200K and 5600K panels,
AC Adapter, Accessory Bracket, Stand Adapter |
$2,195.00 |
 |
902.1227
902.1232
902.1243
902.1256
902.1265
902.1240
902.1250 |
LS/Maverick Phosphor Panel - 2700K
LS/Maverick Phosphor Panel - 3200K
LS/Maverick Phosphor Panel - 4300K
LS/Maverick Phosphor Panel - 5600K
LS/Maverick Phosphor Panel - 6500K
LS/Maverick Phosphor Panel - Chroma Blue
LS/Maverick Phosphor Panel - Chroma Green |
$250.00
$200.00
$250.00
$200.00
$250.00
$95.00
$350.00 |
 |
902.0013 |
RP Panel Pouch |
$95.00 |
Price $See above
Prices in
RED are No Longer Valid - Call for Price.
Prices in BLUE are No Longer Valid - Call for Price
Prices have not been updated and are not applicable.
We are buiding a new site so please use this as an outdated guide only
Please call or email to check current product prices and stock.
