The Select LED’s have the versatility and unique features which make it the perfect imaging tool for use
in any studio production or on location.
Kino Flo's Select LED 30 and 20 DMX systems were launched with great success in June 2016. Lighting
crews embraced the remote LED controller and the light-weight fixture that allow for rigging flexibility.
In addition, users welcomed the ability to dim without colour shift, dial in Kelvin temperatures, and select
Green/Magenta settings using on-board controls or DMX lighting consoles. But, there was also a built-in
secret.
Kino Flo launched the Select LED system as a white light source with Green/Magenta selection. Kino Flo
used an RGB emitter to control the Green/Magenta colour, but we knew that the RGB feature could do
more. We just needed to sort out a menu system that would be as intuitive when using the controller
manually as when using it on DMX.
The solution was to have a second menu option. Those who prefer to work with white light can use the
"white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels.
Kelvin range is from 2700K tungsten to 6500K daylight.

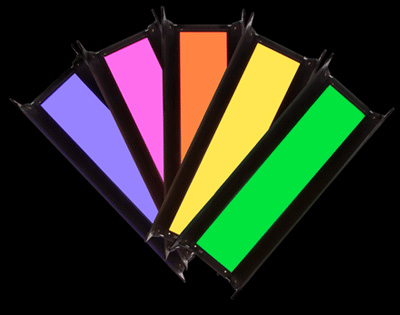

In the first color menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has
set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen,
sodium vapor, mercury vapor and over 100 well-known lighting gels. In addition, there is also a fifth
channel called Hue Angle and sixth channel, Saturation. These two channels behave similar to a traditional
color wheel, where you have white light in the center, the Hue angle determines the color along a 360-degree
range, and Saturation determines how much color is applied. The second color menu provides individual
red, green, blue (RGB) control. This menu is a great way to work with apps with predetermined RGB
presets or color wheels.
For those that have already purchased these units, there will be a free firmware update available in April
2017 to gain access to the new color menus.
Kino Flo's new Select LED's also come with standard DMX and wireless DMX (Lumen Radio®), 24VDC input,
and universal voltage input 100-240VAC (1.3 Amps at 120U). We also recently added new Snapbag
Softbox and Snapgrid accessories.

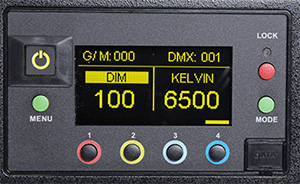

LED Controller - White Mode
Kelvin presets & custom settings, 2700K-6500K
Universal input 100VAC-240VAC or 24VDC
Manual & DMX Dimming w/ Auto Terminate
DMX wireless (Lumen Radio)
Green/Magenta control
Flicker-free, dead quiet operation

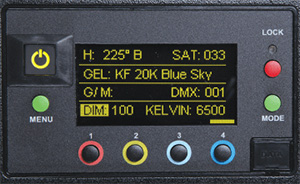

Gels/Hue Color Mode
In addition to White mode features, Color mode includes access to:
Extended Kelvin color range 2500K-9900K
Kino Flo presets and Gels
Dial in any color through Hue Angle and Saturation control

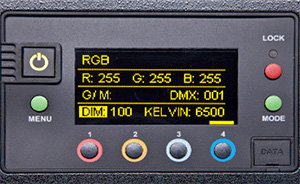

RGB Color Mode
Additional Color mode includes:
Individual Red, Green, Blue (RGB) control
Works with Apps with predetermined RGB presets or color wheels

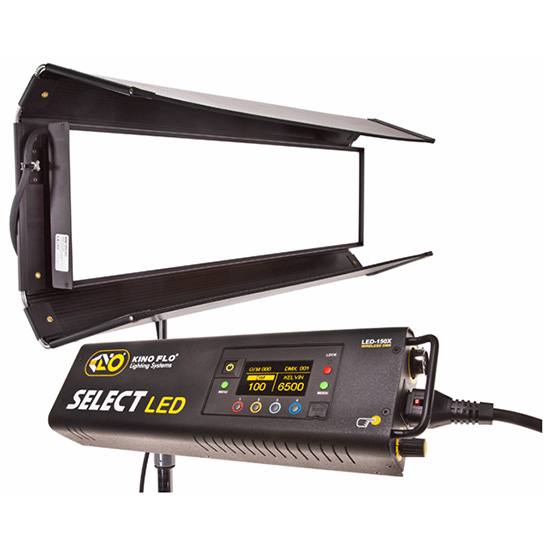

Select LED Fixture
Built-in Barndoors
Removable Honeycomb Louver
Twist-on, locking Center Mount
Features
Kelvin presets
Dial-in colour temperature control between 2700K-6500K
Extended colour pallete from 2500K-9900K
Green/Magenta Control
Hue angle and Saturation adjustments
RGB control
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings
Light levels do not change when selecting Kelvin settings
Color-correct with high colour rendering index (CRI 95)
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 1.3A, 120VAC and 7A, 24VDC (Select LED 30)
Flicker-free, dead quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio)
DMX Auto Terminate
No colour shift while dimming
Remote fixture with built-in barndoors
Fixture includes removable 90° Honeycomb Louver
Honeycomb louver also available in 60° as accessory
Removable Center Mount
Mounts to stand, light enough to be hand-held
Kits
Select LED 30 DMX Kit w/ Soft Case
Select LED 30 DMX Kit w/ Flight Case
KIT-S30B-120U
Select LED 30 DMX Kit, Univ 120U w/ Soft Case
KIT-S30B-230U
Select LED 30 DMX Kit, Univ 230U w/ Soft Case

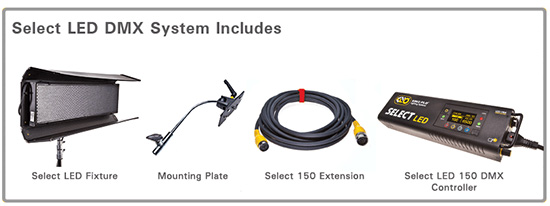

Contents
1 Select LED 30 Fixture
1 Select LED 150 DMX Controller
1 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
1 Extension, 25ft
1 Soft Case
(CFX-SL30)
(LED-150X)
(MTP-BC41)
(X12-25)
(BAG-SL30)
Dimensions
42.5 x 7.5 x 16.5”
(108 x 19 x 42cm)
Weight: 26 lb (12kg)
KIT-S30-120U
Select LED 30 DMX Kit, Univ 120U w/ Flight Case
KIT-S30-230U
Select LED 30 DMX Kit, Univ 230U w/ Flight Case
Contents
1 Select LED 30 Fixture
1 Select LED 150 DMX Controller
1 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
1 Extension, 25ft
1 Flight Case
(CFX-SL30)
(LED-150X)
(MTP-BC41)
(X12-25)
(KAS-DL30)
Dimensions
46 x 11 x 16.5”
(117 x 28 x 42cm)
Weight: 46.5 lb (21kg)
Gaffer LED 30 DMX Kit (2-Unit)
Select LED 20 DMX Kit w/ Soft case
KIT-S32-120U
Gaffer LED 30 DMX Kit, Univ 120U (2-Unit)
KIT-S32-230U
Gaffer LED 30 DMX Kit, Univ 230U (2-Unit)
Contents
2 Select LED 30 Fixture
2 Select LED 150 DMX Controller
2 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
2 Extension, 25ft
1 Ship Case
(CFX-SL30)
(LED-150X)
(MTP-BC41)
(X12-25)
(KAS-SL32)
Dimensions
43.5 x 13 x 18.5”
(110.5 x 33 x 47cm)
Weight: 69 lb (31kg)
KIT-S20B-120U
Select LED 20 DMX Kit, Univ 120U w/ Soft Case
KIT-S20B-230U
Select LED 20 DMX Kit, Univ 230U w/ Soft Case
Contents
1 Select LED 20 Fixture
1 Select LED 150 DMX Controller
1 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
1 Extension, 25ft
1 Soft Case
(CFX-SL20)
(LED-150X)
(MTP-BC41)
(X12-25)
(BAG-SL20) \
Dimensions
31 x 7.5 x 18”
(79 x 19 x 46cm)
Weight: 23 lb (10.5kg)
Select LED 20 DMX Kit w/ Flight Case
Interview LED 20 DMX Kit (2-Unit)
KIT-S20-120U
Select LED 20 DMX Kit, Univ 120U w/ Flight Case
KIT-S20-230U
Select LED 20 DMX Kit, Univ 230U w/ Flight Case
Contents
1 Select LED 20 Fixture
1 Select LED 150 DMX Controller
1 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
1 Extension, 25ft
1 Flight Case
(CFX-SL20)
(LED-150X)
(MTP-BC41)
(X12-25)
(KAS-DL20)
Dimensions
30 x 10.5 x 21”
(76 x 27 x 53cm)
Weight: 38 lb (17kg)
KIT-S22-120U
Interview LED 20 DMX Kit, Univ 120U (2-Unit)
KIT-S22-230U
Interview LED 20 DMX Kit, Univ 230U (2-Unit)
Contents
2 Select LED 20 Fixture
2 Select LED 150 DMX Controller
2 MTP-BC41 Mount w/
Baby Receiver Curve (16mm)
2 Extension, 25ft
1 Ship Case
